Deutsch DT3 Plug – Complete Connector Kit

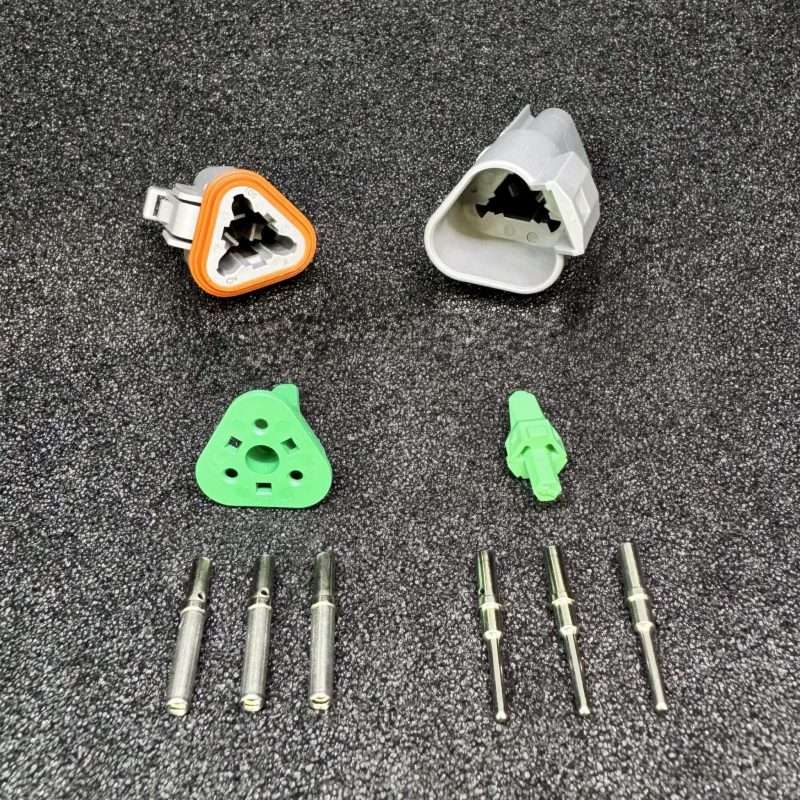

Deutsch DT 3-Way Complete Connector Kit

Deutsch DT 3-way complete kit features compact sealed housings for harsh automotive environments.
Includes plug and receptacle housings with green locking wedges,
3x solid-formed male nickel-plated pins, and 3x solid-formed nickel-plated sockets.

Size 12 DT terminals accept 16-20 AWG wire, suitable for solid or stranded conductor.
Solid-formed nickel-plated terminals ensure reliable electrical contact, not stamped terminals.

What’s Included:

1x DT3-way male plug housing
1x DT3-way female connector housing
2x Green locking wedges
3x Solid-formed male nickel-plated pins
3x Solid-formed female nickel-plated sockets

Technical Specifications:

Wire Capacity: 16-20 AWG
Current Rating: 13A per contact
Wedge: Green locking wedge
Operating Temperature: -55°C to +125°C
Includes: Both male and female halves

Individual halves available separately:

After a different pin count, see our range of DT connector:

NZ Wiring Stock:

We list the item’s we stock in Petone, Wellington. Available stock is listed above add to cart.
For items not listed, please contact us for pricing and availability on the full Deutsch DT range.
