Deutsch DTM3 Plug – Male Connector Kit

Deutsch DTM 3-Way Male Plug Connector Kit

Deutsch DTM 3-way male plug kit with housing features compact sealed housings for harsh automotive environments.
Size 20 DTM terminals accept 24awg to 20awg wire, suitable for solid or stranded conductor.
Gold-plated terminals ensure reliable electrical contact, are solid-form gold-plated design, not lower-cost pressed style

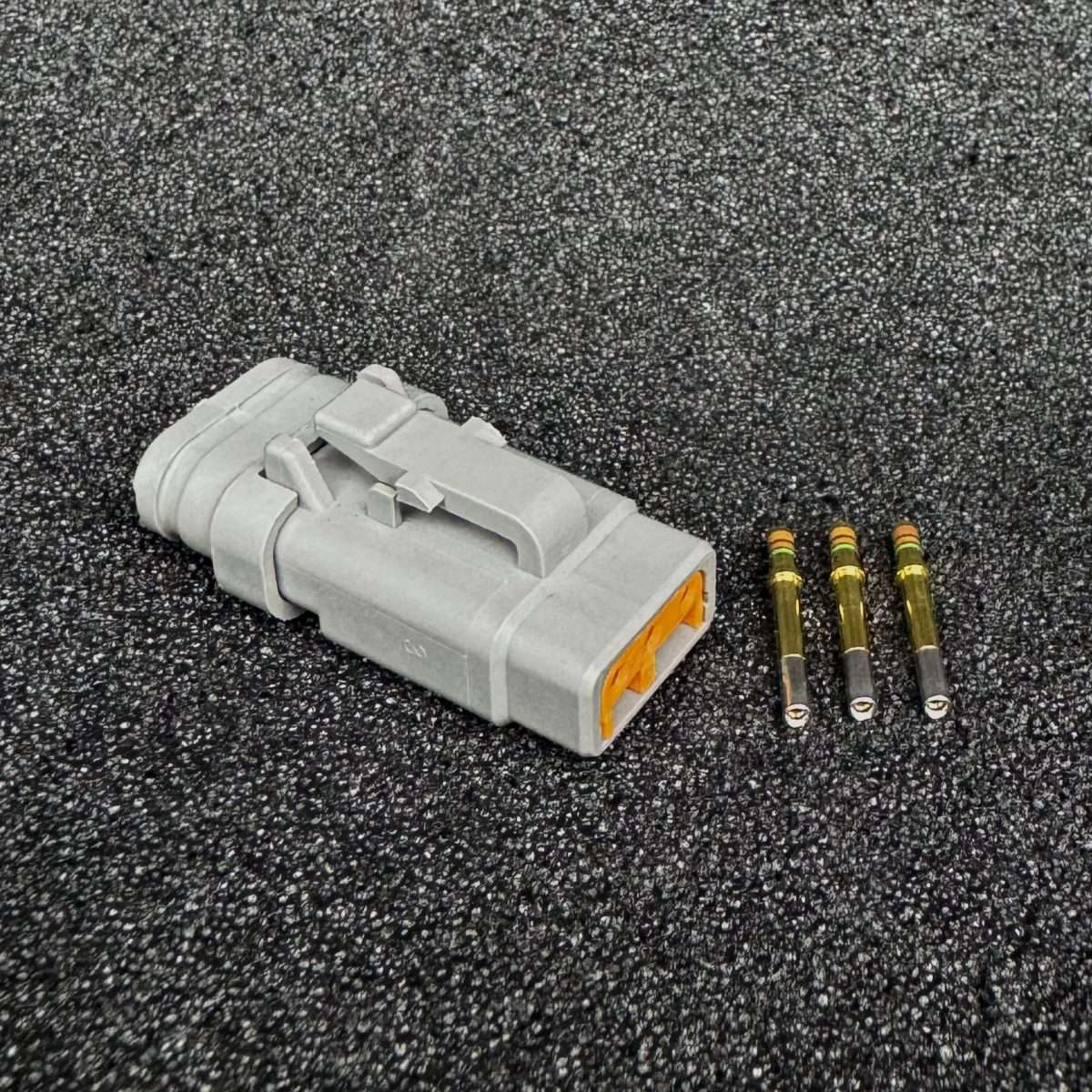

What’s Included:

– 1x DTM 3-way Male plug housing
– 1x Orange locking wedge
– 3x Gold-plated size 20 DTM female sockets

Technical Specifications:

– Wire Capacity: 24awg to 20awg
– Terminal Type: Size 20 DTM female gold-plated sockets
– Current Rating: 7.5A per contact
– Wedge: Orange locking wedge
– Operating Temperature: -55°C to +125°C
– Gender: Male housing with female plugs

After a different pin count, see our range of DTM connectors:
Click Here

For items not listed, please contact us for pricing and availability on the full Deutsch DTM range.
